Open the file
Drop a DXF or SVG into the app. Parsing and geometry checks run in your browser.
File checks for laser, CNC and plasma
Find what's wrong with your DXF.
DXF Medic checks DXF and SVG files for contour gaps, duplicate points and other geometry problems. Read the findings, adjust the repair settings and export the result without uploading your file.
Diagnosis is free with no file limit; repaired downloads are free when the result contains up to five parts.

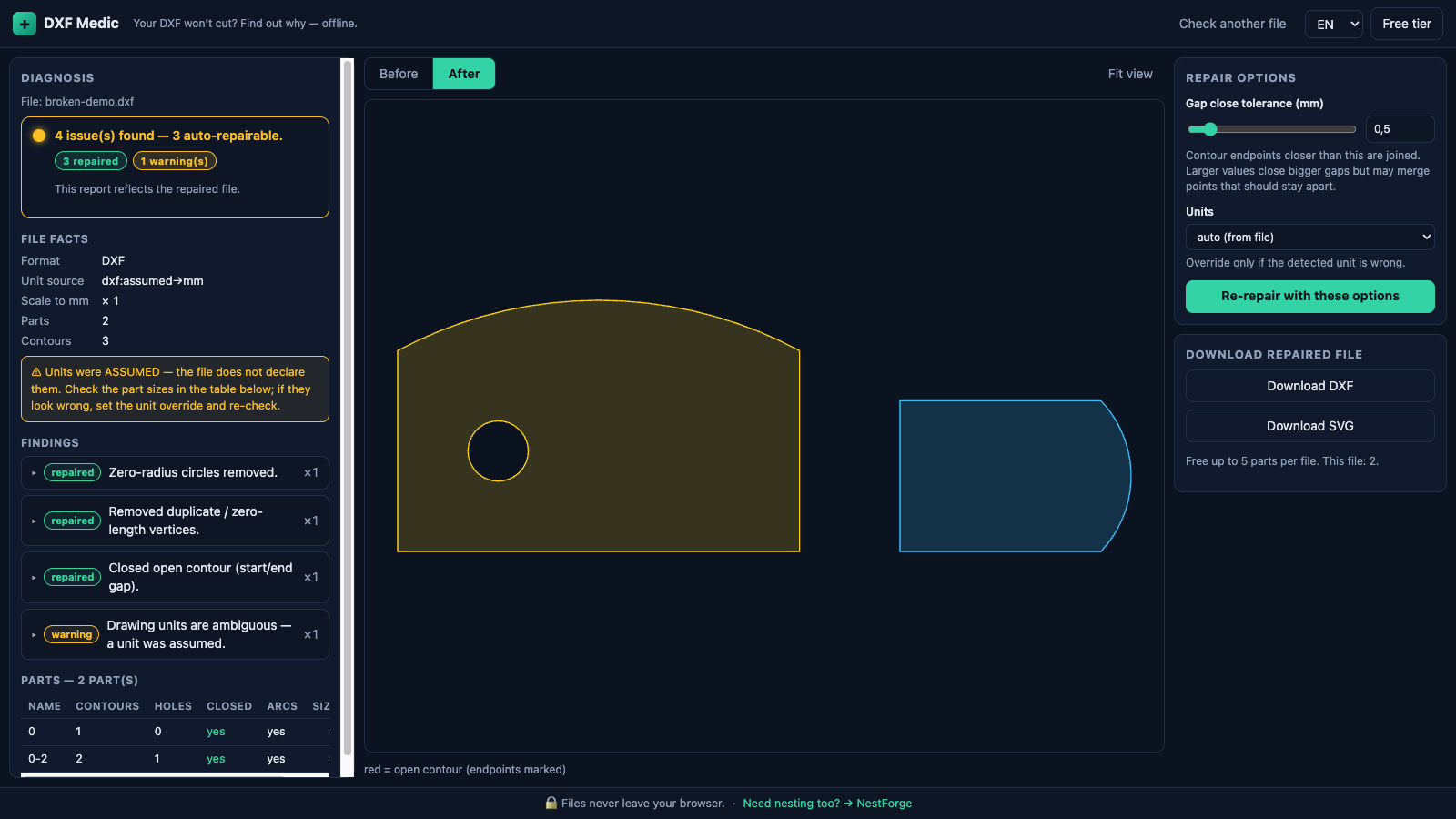

A file check and geometry preview in the DXF Medic app.
Check the file before sending it to CAM
Read the findings
Inspect reported defects, measurements and suggested next steps. Confirm the units and set the gap-closing tolerance.
Review the repair
Run the repair and inspect its reported changes. Export the result as DXF or SVG for your existing workflow.
See the defect and the next step
Named findings
The report identifies problems such as open contours, duplicate vertices and self-intersections, with measurements or guidance where available.
Adjustable gap repair
Close small gaps within your chosen tolerance. The repair also handles duplicate vertices and degenerate geometry, with changes recorded in the report.
Units and curved geometry
Check assumed units or override them before export. Supported circles and arcs remain curved geometry through repair and DXF or SVG export.
Some findings need a CAD edit
Self-intersections, unsupported entities and truncated files are reported rather than automatically reconstructed. Repairs depend on the input and your tolerance settings. DXF Medic imports SVG and text DXF, not DWG. It doesn't redraw a design, nest parts or generate CAM toolpaths and G-code.
Start with your own file.
Try the free version. A license extends it for larger jobs.
Free
0 €
- Unlimited file diagnosis
- Complete findings and repair controls
- Download results with up to 5 parts
- DXF and SVG export
DXF Medic
9 €
One-time purchase for version 1
- Repaired exports without a part limit
- The same diagnosis and repair tools
- Offline license key
- All v1 updates included
VAT or sales tax may apply depending on your country. Gumroad shows the final total at checkout.
Before your first project.
What can it repair automatically?
Small contour gaps within your chosen tolerance, duplicate vertices and degenerate geometry. The report records the changes. Self-intersections, unsupported entities and truncated files need attention in the source file or CAD tool; DXF Medic doesn't reconstruct them automatically.
What exactly is free?
Diagnosis and the repair controls have no file limit. You can download a repaired DXF or SVG for free when the repaired result contains up to five parts. Exporting more parts requires a license.
Can I open a DWG file?
No. Use SVG or DXF R12, 2000 or 2007 in text format. Convert DWG or binary DXF to text DXF in your design software before importing.
Does my file leave the browser?
No file upload is needed for diagnosis or repair. Processing and license verification run locally. Once the app and its assets are cached, you can also use it offline.
Do I have to subscribe?
No. The full license is a one-time purchase for DXF Medic v1, including v1 updates. The purchased version doesn't expire. The checkout shows any applicable VAT or sales tax in the total.
